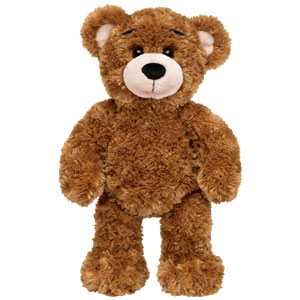

Neury for Cygnet has a special connector designed specifically for use with the EEG Info NeuroAmp and Cygnet software. This new design eliminates the need for any extra devices and allows for the bear to plug in directly to the NeuroAmp with only one cable. Using Neury is now an intuitive experience with only a few easy steps to incorporate Neury into your Neurofeedback sessions.

Connecting the bear to the NeuroAmp

1. Locate the male DIN connector at the end of the cable that protrudes from the back of the bear.







   1. Plug the connector into any of the DIN receptacles on the bottom face of the neuramp.






Configuring Tactile Feedback Settings in Cygnet

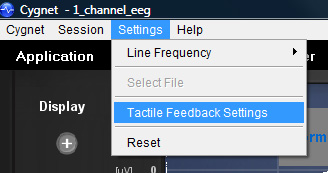

1. Click on Settings
2. Click on Tactile Feedback Settings

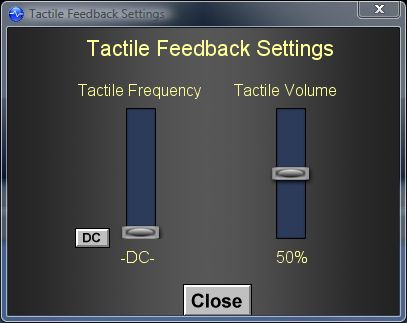

3. Adjust the Tactile Volume to a comfortable level. This will adjust the degree to which the bear vibrates.
   Note: You must be in an active LIVE session to feel the bear vibrating. The bear will NOT operate in Simulation mode.

   DC is the recommended setting for Tactile Frequency .
