Instructions: How to use video playback in BioExplorer

• Open BioExplorer
• Click Design > Open




• Choose a design with Video Playback (ex. EEG INFO 1 Channel High and Low Inhibits with Video.bxd )
• Click Open

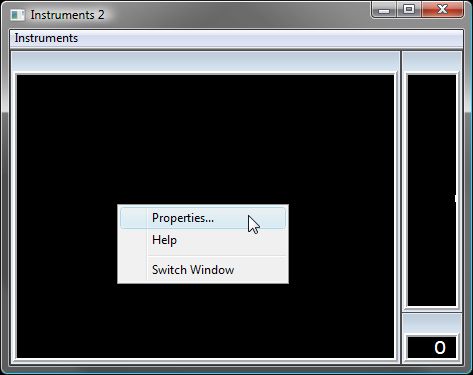

• In the Instruments 2 window, right click in the Video Player 1 area and click properties.

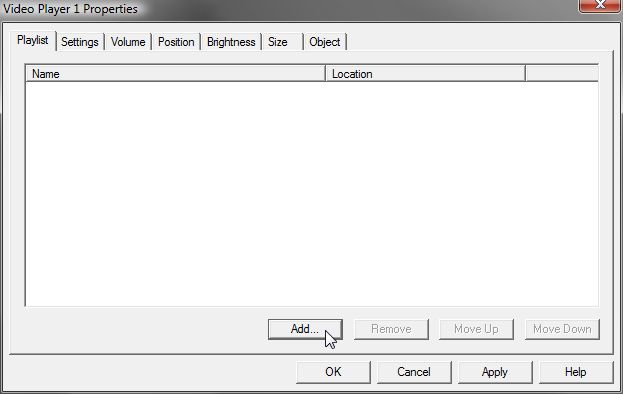

• You should now be looking at the Playlist Tab. Click Add.

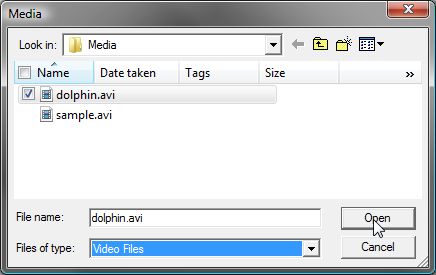

• You may now select a media file and click Open to add the file to your playlist.
  By default, BioExplorer looks for Media files in the following location: C:/Program Files/BioExplorer/Media
  It is recommended that you copy your media files to that folder. In this case the files would be video files ( WMV, MPEG, AVI )




• A Red X next to a filename in the Playlist means that the file is no longer found. Click on the file to Highlight and then choose Remove to make it go away.
• Click OK at the bottom of the Window to close the window and return to BioExplorer.

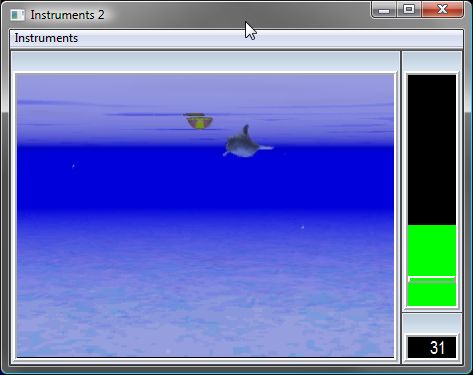

Your video is now ready for playback. Don't forget to press the PLAY button in the Instruments 1 screen to begin your session. The Instruments 2 screen will show the video playing as well as a points score and a bar showing Reward threshold and activity. The video will pause whenever the reward frequency threshold is not met.
